MIL-PRF-19500/443B
Dimensions
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
BD
.045
.076
1.14
1.93
3
BL
.100
.170
2.54
4.32
3
LD
.014
.016
0.36
0.41
4
LL
.975
1.5
24.77
38.10
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Package contour optional within BD and BL. Heat slugs, if any , shall be included within this cylinder
but shall not be subject to minimum limit BD.
4. Within this zone, lead diameter may vary to allow lead finishes and irregularities other than heat slugs.
5. In accordance with ANSI Y14.5M, diameters are equivalent to φx symbology.

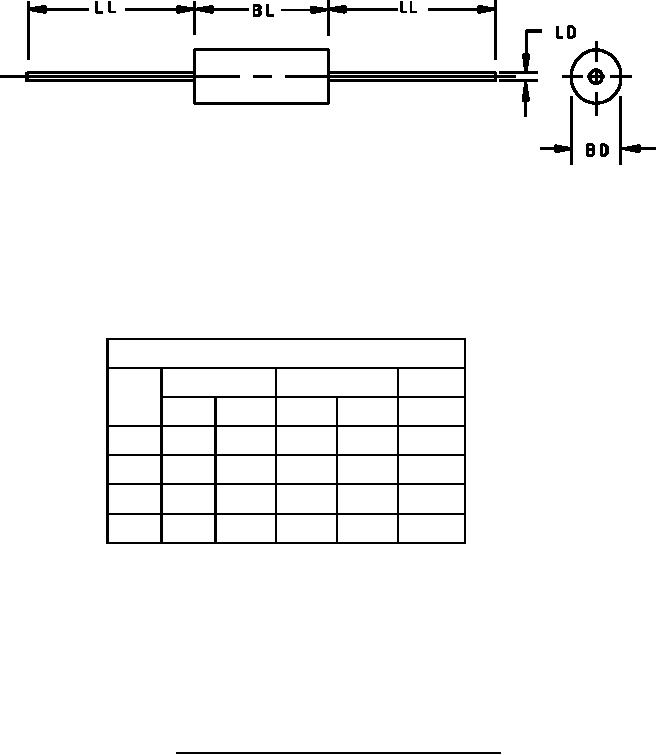

FIGURE 1 Physical dimensions 1N5194UR, 1N5195UR, AND 1N5196UR.
