MIL-PRF-19500-443 Semiconductor Device, Diode, Silicon, Switching Type 1N5719 Jan, Jantx And Jantxv \(Refer To Dscc Dwg 01038\)This specification covers the performance requirements for silicon pin diodes. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500 \(see 6.3.2\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/443B
NOTE:
D1 and 02 shall be 1N4456 high conductive diodes, or equivalent. For D3, use Hewlett Packard No. 5082-2835, or equivalent.

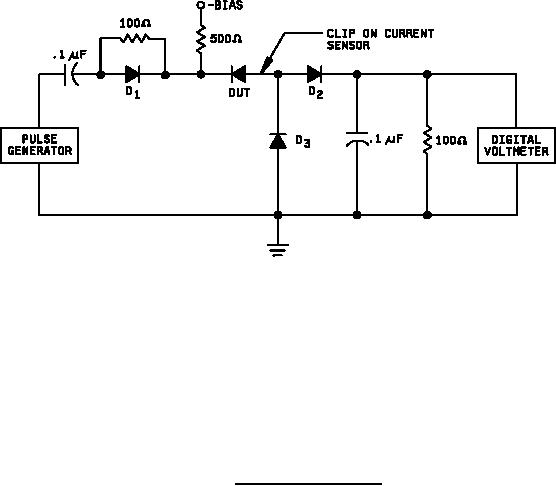

FIGURE 2. Stored charge meter method.
