MIL-PRF-19500/436A
Dimensions
Ltr
Notes
Inches
Millimeters
Min
Max
Min
Max
LD
.018
.022
0.46
0.56
BD
.078
.107
1.98
2.72
3
BL
.195
.300
4.95
7.62
3
LL
1.00
1.50
25.40
38.10
LL1
---
.050
---
1.27
4
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Package contour optional within BD and length BL. Heat slugs, if any, shall be included within this cylinder but shall not
be subject to minimum limit of BD.
4. Within this zone lead, diameter may vary to allow for lead finishes and irregularities other than heat slugs.

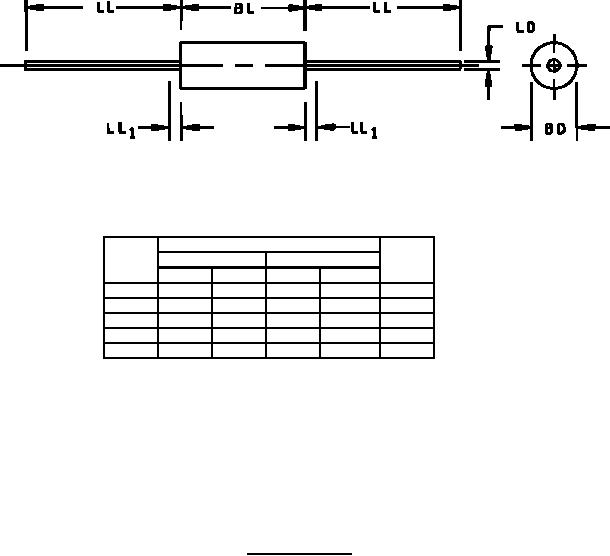

FIGURE 1. Physical dimensions
2
