MIL-PRF-19500-187 Semiconductor Diode, Silicon, High-Voltage Type Jan1N2361This specification covers the performance requirements for silicon semiconductor diodes for use in high-voltage, rectifier circuits, and having the following particular characteristics. One level of product assurance is provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-PRF-19500/187B
NOTES:
1. Dimensions are in inches.
2. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

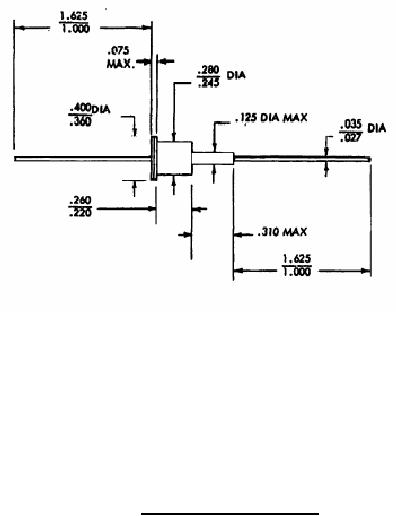

* FIGURE 1. Physical dimensions, 1N2361.
