MIL-PRF-19500/198E
20 Ω, 20 watt
T1
115 VAC adjustable transformer
R2
1,000 Ω, 1/4 watt
T2
115 VAC adjustable transformer
R3
T3
Step up transformer 115 VAC to 140 VAC
M1
Peak reading voltmeter or RMS equivalent (0 - 250
T4
Step down transformer 115 VAC to 12 VAC
volts)
T5
Step down transformer 115 VAC to 3.0 VAC
M2
DC millimeter 0 - 300 mA
D1, D2
1N540
M3
Peak reading voltmeter or RMS equivalent (0 - 10
20 kΩ, 1/2 watt
R1
volts)

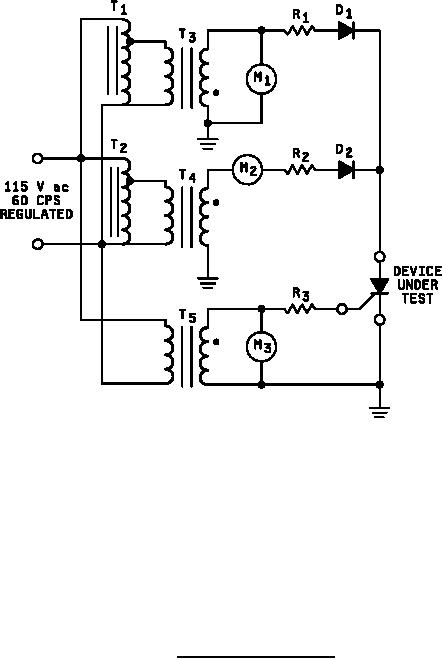

FIGURE 6. Operational life test circuit.
12
