MIL-PRF-19500/262G
Dimension
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
A
.422
.455
10.72
11.56
B
.325
.460
8.26
11.68
C
.640
.875
16.26
22.22
6
D
.047
.072
1.19
1.83
7
E
.095
.115
2.41
2.92
7
F
.150
3.81
G
.090
.150
2.29
3.81
H
.570
.610
14.48
15.49
J
.340
.415
8.64
10.54
K
.667
.687
16.94
17.45
8
L
.170
.213
4.32
5.41
M
.610
.687
15.49
17.45
N
.270
6.86
O
.220
.249
5.59
6.32
P
.090
2.29
NOTES:
1. Dimensions are in inches, millimeters are given for general information only.
2. The collector shall be electrically connected to the case.
3. Lead spacing measured at seat only.
4. Position of leads in relation to hex is not controlled.
5. Maximum recommended mounting torque: 20 in-lb.
6. All three leads.
7. Two leads.
8. All three Iocations.
9. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
10. Threads in accordance with Handbook H28.

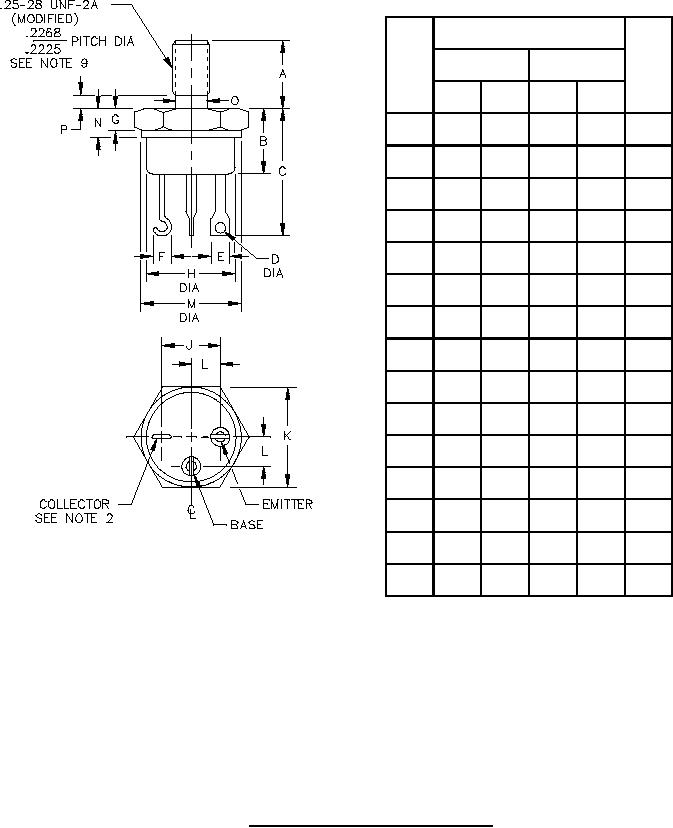

FIGURE 2. Physical dimensions (TO-61) for 2N1724.
4
