MIL-PRF-19500-594 Semiconductor Device, Diode, Silicon, Power Rectifier, Ultra Fast Recovery, Low Leakage, Types 1N6664 Through 1N6666, And 1N6664R Through 1N6666R Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for a silicon, fast recovery power rectifier diodes. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/594B
Dimensions
Ltr
Millimeters
Inches
Min
Max
Min
Max
BL
10.41
10.92
.410
.430
CH
4.83
5.08
.190
.200
LD
0.64
0.89
.025
.035
LL
12.82
15.11
.505
.595
LO
3.05 BSC
.120 BSC
LS
2.54 BSC
.100 BSC
MHD
3.56
3.81
.140
.150
MHO
13.39
13.64
.527
.537
TL
16.38
16.89
.6450
.665
TT
0.89
1.14
.035
.045
TW
10.41
10.67
.410
.420
Term 1
See schematic
Term 2
See schematic
Term 3
See schematic
NOTES:
1.  Dimensions are in millimeters.
2.  Inch equivalents are given for general information only.
3.  Glass meniscus included in dimension TL and BL.
4.  In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
*

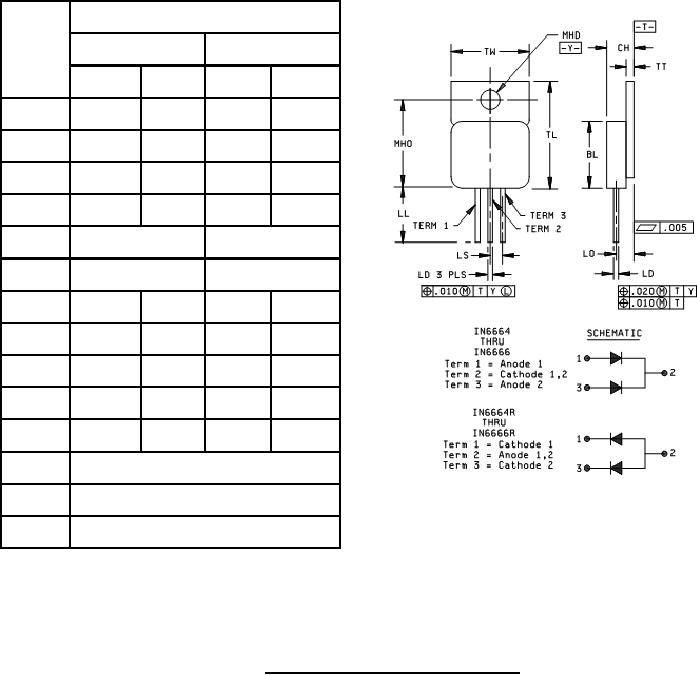

* FIGURE 1. Dimensions and configuration (TO-257AA).
