MIL-PRF-19500/621D
*
NOTES:
1. The input waveform is supplied by a pulse generator with the following characteristics:
tr ≤ 20.0 ns, tf ≤ 1µs, 10 µs ≤ PW ≤ 100 µs, ZOUT = 50Ω, duty cycle ≤ 2 percent.
2. Output waveforms are monitored on an oscilloscope with the following characteristics:
tr ≤ 5 ns, ZIN ≥ 100 kΩ, CIN ≤ 12 pF.
3. Test circuit A for td and tr; test circuit B for ts and tf.

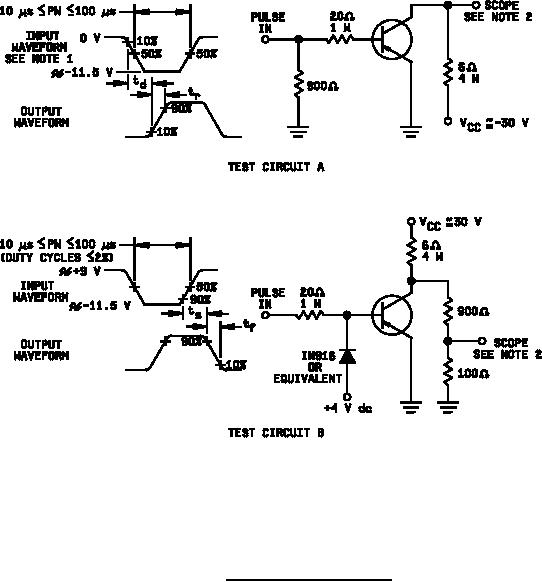

FIGURE 4. Pulse response test circuits.
