MIL-PRF-19500-127 Semiconductor Devices, Diode, Silicon, Voltage Regulator, Types 1N4370A 1 Through 1N4372A-1 And 1N746A-1 Through 1N759A-1, 1N4370Aur-1 Through 1N4372Aur-1 And 1N746Aur-1 Through 1N759Aur-1, 1N4370C-1 Through 1N4372C-1 And 1N746C-1 Through 1N759C-1, 1N4370Cur-1 Through 1N4372Cur 1 And 1N746Cur-1 Through 1N759Cur-1, 1N4370D-1 Through 1N4372D-1 And 1N746D-1 Through 1N759D-...This specification covers the performance requirements for 500 milliwatt, silicon, voltage regulator diodes with voltage tolerances of 5, 2, and 1 percent. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance is provided for each unencapsulated device.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-19500/127W
(A ­ version)
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.021
.025
0.53
0.63
B
.013
.017
0.33
0.43
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. The physical characteristics of the die thickness are .010 .002 (0.25 mm 0.051 mm).
Metallization is top = (anode)-AL, back: (cathode)-AU.
AL thickness = 25,000 Å minimum,
AU thickness = 4,000 Å minimum.

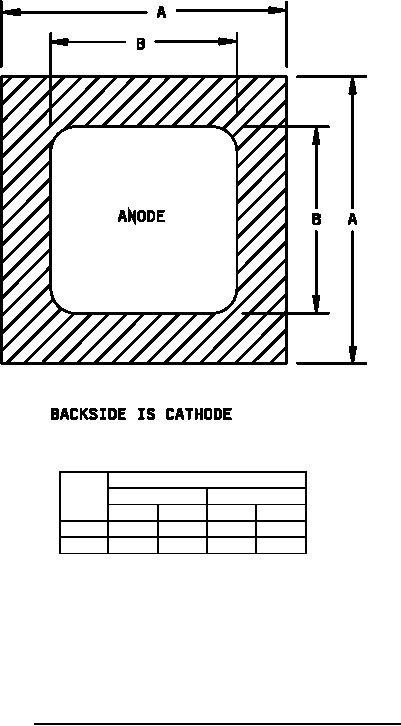

FIGURE 3. Physical dimensions (JANHCA and JANKCA die dimensions).
5
