MIL-PRF-19500/177H
NOTES:
1. The rise time (tr) of the applied pulse shall be ≤ 2.0 ns, duty cycle ≤ 2 percent, and the generator source
shall be 50 Ω.
2. Sampling oscilloscope: Zin ≥ 100 kΩ, Cin ≤ 12 pF, rise time ≤ .5 ns.

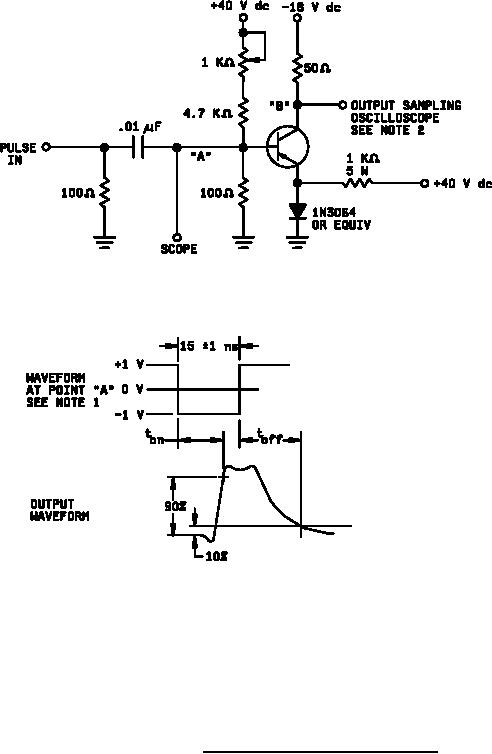

FIGURE 2. Nonsaturated switching time test circuit.
9
