MIL-PRF-19500-467 Semiconductor Device, Diode, Light Emitting Types In5765 Jan And TxThis specification covers the performance requirements for hermetically-sealed, red light emitting diodes. Two levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-PRF-19500/467A

Dimensions

Ltr

Inches

Millimeters

Min

Max

Min

Max

.176

.190

4.47

4.83

BD1

.200

.220

5.08

5.59

.180

.225

4.57

5.72

.035

.045

0.89

1.14

.013

.024

0.33

0.61

.032

.042

0.81

1.07

.016

.019

0.41

0.48

.970

1.030

24.64 26.16

.045

.055

1.14

1.40

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Glass/metal hermetic can.

4. Cathode lead; both leads isolated from case.

5. Red colored glass lens.

6. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

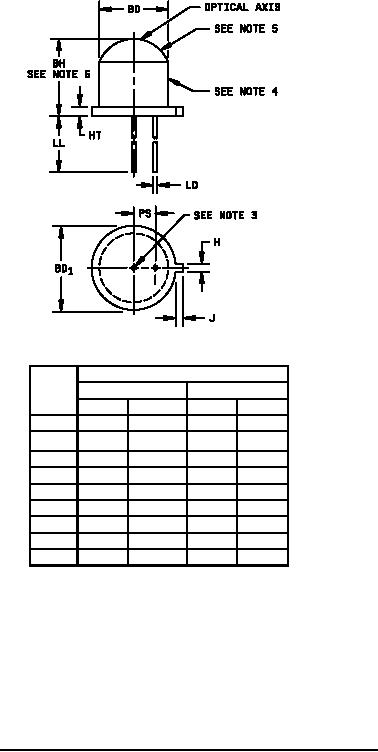

FIGURE 1. Physical dimensions for types JAN1N5765 and JANTX1N5765.
