MIL-PRF-19500-498 Semiconductor Device, Translator, Npn, Silicon, Power Types 2N6306, 2N6306T1, 2N6306T3, 2N6308, 2N6308T1, 2N6308T3, Jan, Jantx And JantxvThis specification covers the performance requirements for NPN silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/498E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
BL
.410
.430
10.41
10.92
CH
.190
.200
4.83
5.08
LD
.025
.035
0.64
0.89
LL
.500
.750
12.70
19.05
TO-257AA
LO
.120 BSC
3.05 BSC
LS
.100 BSC
2.54 BSC
MHD
.140
.150
3.56
3.81
MHO
.527
.537
13.39
13.63
TL
.645
.665
16.38
16.89
TT
.035
.045
0.89
1.14
TW
.410
.420
10.41
10.67
Term 1
Base
Term 2
Collector
Term 3
Emitter
NOTES:
1.  Dimensions are in inches.
2.  Millimeters are given for general information only.
3.  All terminals are isolated from case. Methods used for electrical isolation of the terminals
feedthroughs shall employ materials that contain a minimum of 90 percent AL2O3 (ceramic).
4.  In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

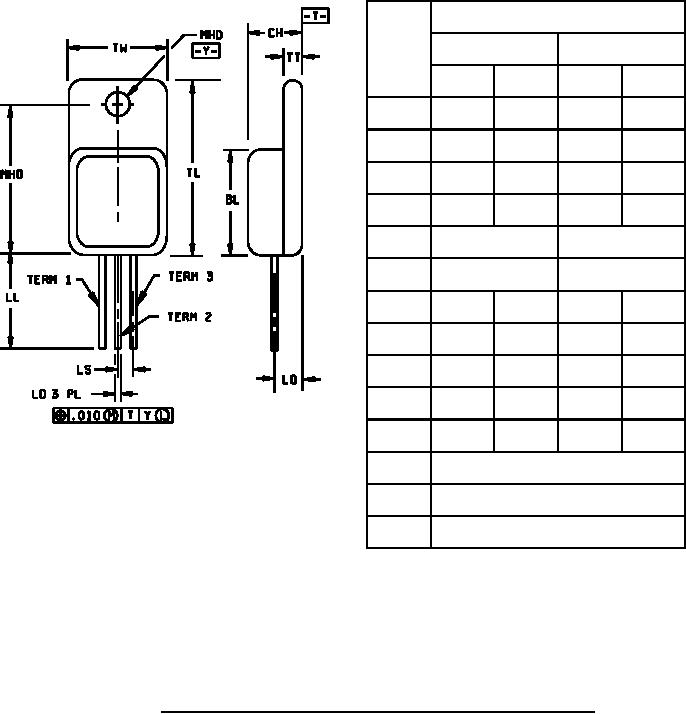

FIGURE 3. Dimensions and configuration for 2N6306T3 and 2N6308T3 (TO-257AA).
