MIL-PRF-19500/522A
Dimensions
Ltr
Inches
Millimeters
Min.
Max
Min
Max
A
0.090
0.105
2.29
2.67
C
0.032
0.050
0.89
1.40
D
0.016
0.024
0.41
0.61
F
0.035
0.043
0.89
1.09
J
0.003
0.006
0.08
0.15
K
0.175
0.230
4.45
5.84
NOTE:
The top of the device body is hermetically sealed by a metallic cap which is electrically connected to the emitter.

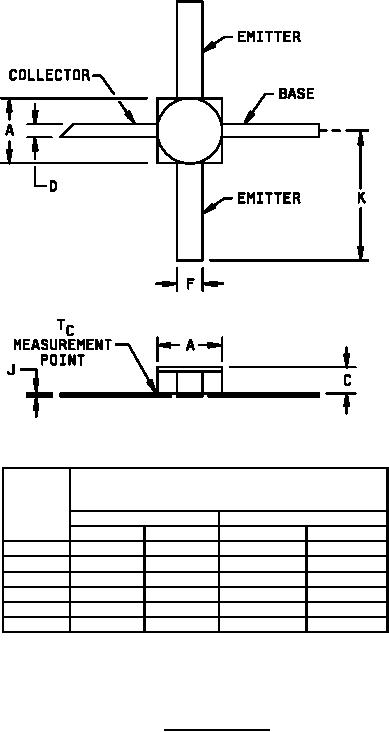

FIGURE 1. Physical dimensions
