MIL-PRF-19500-522 Semiconductor Device, Transistor, Npn, Silicon, High-Frequency Types 2N6603 And 2N6604 Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, microwave transistors. Three levels of product assurance are provided for the device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/522A

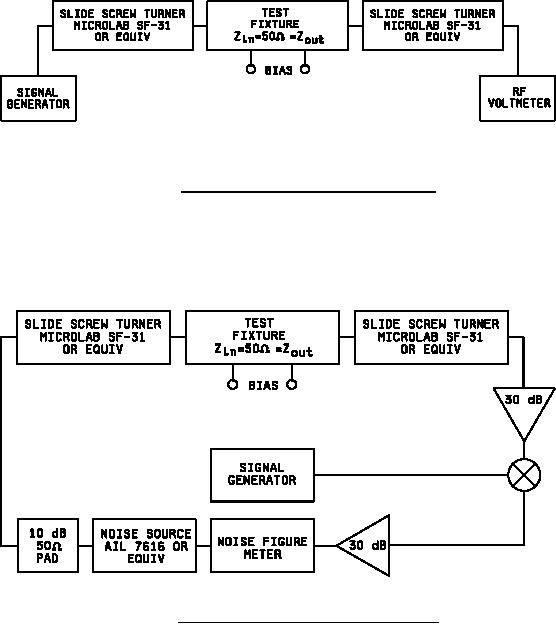

FIGURE 2. Block diagram of Power Gain test circuit at 1 GHz.
FIGURE 3. Block diagram of Noise Figure test circuit at 1 GHz.
