MIL-PRF-19500-526 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N3879, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/526H

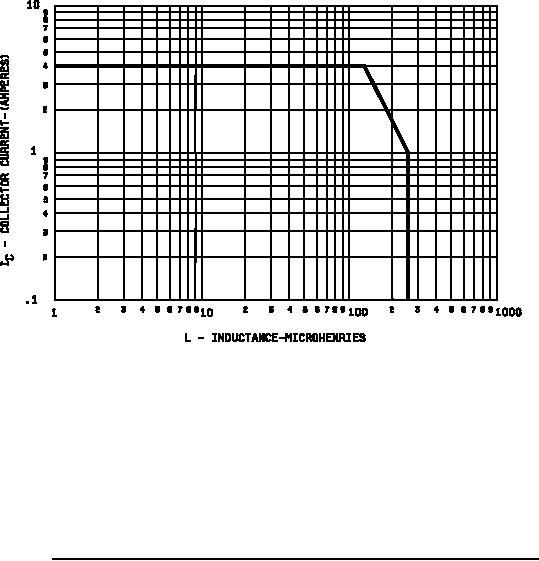

FIGURE 4. Safe operating area for switching between saturation and cutoff (unclamped load).
