MIL-PRF-19500-544 Semiconductor Device, Transistor, Npn, Silicon, Power, Types 2N5152, 2N5154, 2N5152L, 2N5154L, 2N5152U3, 2N5154U3, Jan, Jantx, Jantxv, Jantxvf, Jantxvr, Jans, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh, Janhcb, Janhcd, Janhce, Jankcb, Jankcbf, Jankcd, Jankce, Jankcdm, Jankcdd, Jankcdp, Jankcdl, Jankcdr, Jankcdf, Jankcdg, And JankcdhThis specification covers the performance requirements for NPN, silicon, power transistors for use in high-speed power-switching applications. Four levels of product assurance are provided for each encapsulated device type and two levels of product assurance are provided for each unencapsulated device type as specified in MIL-PRF-19500. RHA level designators "M", "D", "P", "L", "R", "F", "G", and "H" are appended to the device prefix to identify devices, which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/544H

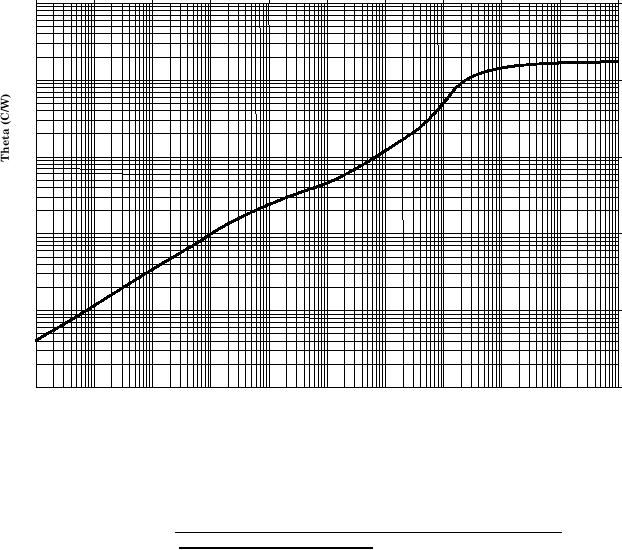

Maximum Thermal Impedance
1000
100
10
1
0.1
0.01
10
0.00001
0.0001
0.001
0.01
0.1
100
1000
0.000001
10000
1
Time (s)
TA = +25°C, thermal resistance RθJA = 175°C/W.
FIGURE 10. Thermal impedance graph (RθJA) for 2N5152, 2N5154, 2N5152L,
and 2N5154L (TO-5 and TO-39).
25
