MIL-PRF-19500-225 Semiconductor Device, Transistor, Npn, Silicon, Types 2N1711, 2N1711S, 2N1890, And 2N1890S, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, low-power transistors. Two levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-19500/225K
Maximum Thermal Impedance
100
10
1
0.1
0.000001
0.00001
0.001
0.01
0.1
0.0001
100
10
1
Time (s)

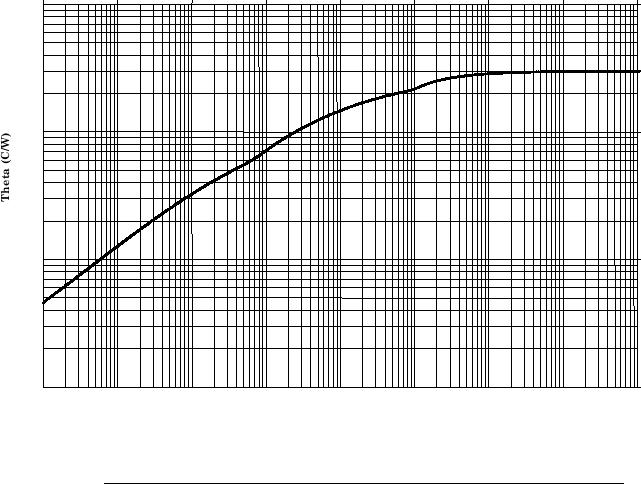

FIGURE 5. Thermal impedance graph (RθJC) for 2N1711, 2N1711S, 2N1890, and 2N1890S (TO-5).
