MIL-PRF-19500-337 Semiconductor Device, Silicon, Switching, Types 1N4153-1, 1N4153Ur-1, 1N4153Ub, 1N4153Ubca, 1N4153Ubcc, 1N4153Ubd, 1N4153Ubn, 1N4153Ubnd, 1N4534, And 1N4534Ub, Jan, Jantx, Jantxv, Janhc, And JankcThis specification covers the performance requirements for controlled forward voltage switching diodes. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/337L
1N4153-1, 1N4534 DO-35, DO-34 Axial TL = 25°C
J1N4148-1 Family, DO-35 Axial, TL=25C at 0.375"
Maximum TherermallImpedpeedance Plots
Thm  a Im  anc Plot
1000
100
10
1
0.0001
0.001
0.01
0.1
1
10
100
Time (s)
RθJL = 250°C/W
NOTE: ZθJX = 70°C/W maximum at tH = 10ms.

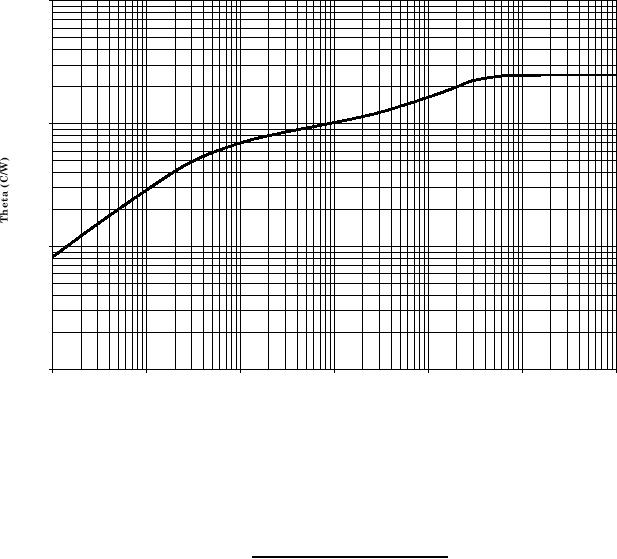

FIGURE 7. Thermal impedance (axial leads).
