MIL-PRF-19500-337 Semiconductor Device, Silicon, Switching, Types 1N4153-1, 1N4153Ur-1, 1N4153Ub, 1N4153Ubca, 1N4153Ubcc, 1N4153Ubd, 1N4153Ubn, 1N4153Ubnd, 1N4534, And 1N4534Ub, Jan, Jantx, Jantxv, Janhc, And JankcThis specification covers the performance requirements for controlled forward voltage switching diodes. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/337L
DO-213AA
Dimensions
Inches
Millimeters
Symbol
Min
Max
Min
Max
BD
.063
.067
1.60  1.70
BL
.130
.146
3.30  3.70
ECT
.016
.022
0.41  0.55
S
.001 min
0.03 min
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimensions are pre-solder dip.
4. Referencing to dimension S, minimum clearance of glass body to mounting surface on all orientations.
5. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

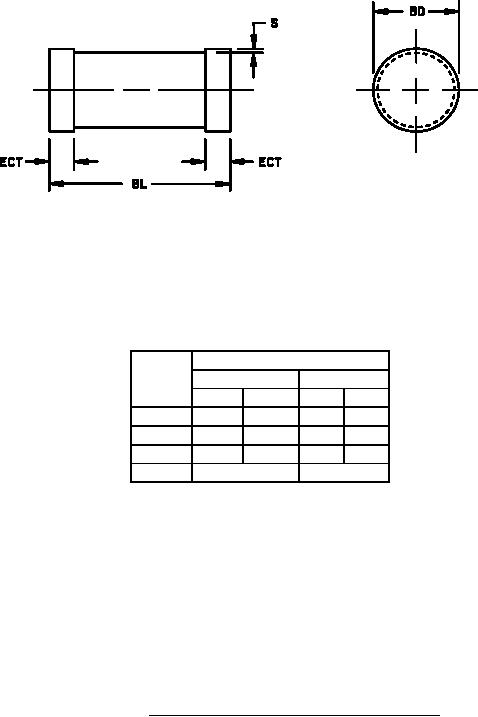

FIGURE 2. Physical dimensions, 1N4153UR-1 (DO-213AA).
4
