MIL-PRF-19500-347 Semiconductor Device, Transistor, Npn, Silicon, Power Types: 2N3253, 2N3253S, 2N3444, 2N3444S, Jan, And JantxThis specification covers the detail requirements for NPN silicon power transistors. Two levels of product assurance is provided for the device type as specified in MIL-S-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/347B

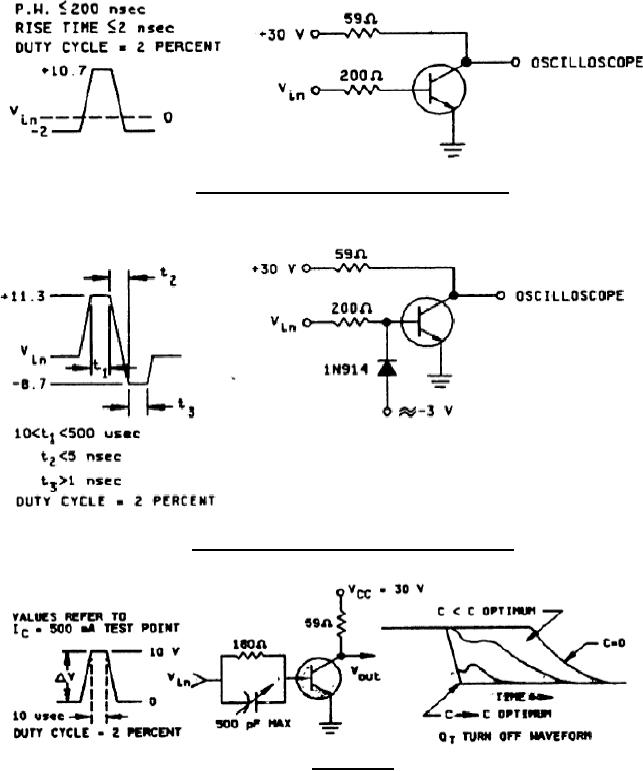

FIGURE 2. Equivalent circuit for measuring delay and rise times.
FIGURE 3. Equivalent circuit for measuring storage and fall times.
FIGURE 4. QT test circuit.
11
