MIL-PRF-19500-369 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N3441, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistor. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/369H
Maximum Thermal Impedance
10
1
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
10
Time (s)
TC = +25°C, thermal resistance RθJC = 3°C/W at TC +25°C.

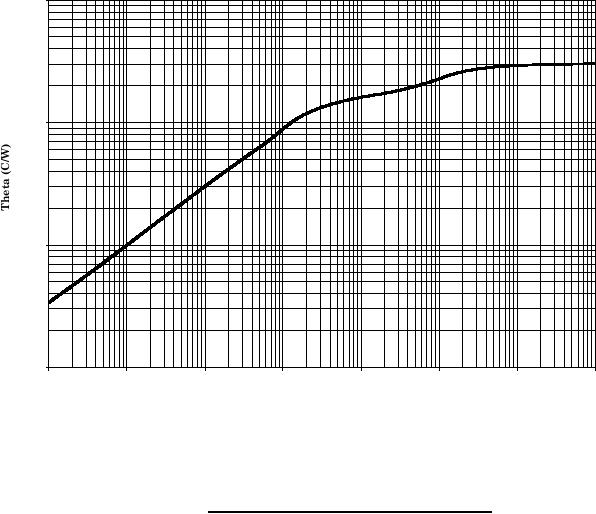

FIGURE 4. Thermal impedance graph for 2N3441, (TO-66).
