MIL-PRF-19500/369H
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be each ≤ 20 ns; duty cycle ≤ 2 percent; generator
source impedance shall be 50Ω; pulse width = 20 µs.
2. Output sampling oscilloscope: Zin ≥ 100 kΩ; Cin ≤ 50 pF; rise time ≤ 20 ns.

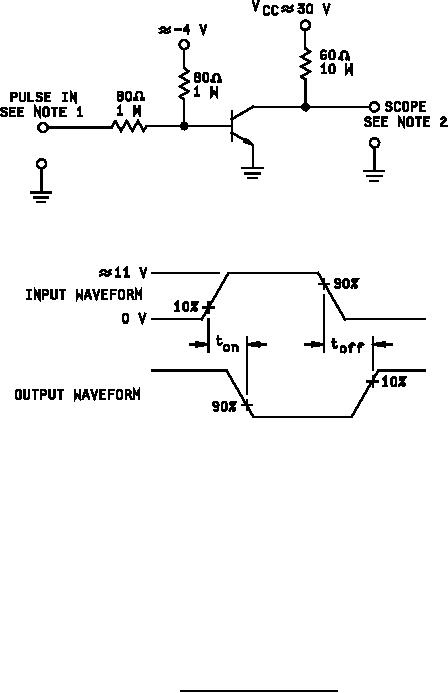

FIGURE 5. Pulse response test circuit.
15
