MIL-PRF-19500/394N

NOTES:

1. Die size:

.155 x .155 inch (3.937 x 3.937 mm).

2. Die thickness:

.008 �.0016 inch (0.2032 �0.04064 mm).

3. Base pad:

.012 x .090 inch (0.3048 x 2.286 mm).

4. Emitter pad:

.012 x .090 inch.

5. Back metal:

Gold, 2,400 �720 �.

6. Top metal:

Aluminum, 37,500 �7,500 �.

7. Back side:

Collector.

SiO2, 7,500 �1,500 �.

8. Glassivation:

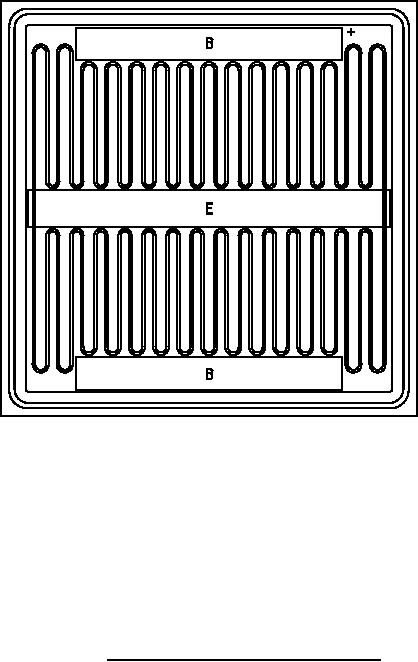

FIGURE 3. JANHC and JANKC B-version die dimensions.
