MIL-PRF-19500/404C
NOTES:
1.  Oscilloscope-rise time < 7 ns; input impedance = 1 MΩ; 22 pF.
2.  Pulse generator - rise time < 10 ns; source impedance = 50Ω.
3.  Recovery time shall be measured on the above circuit and with equipment as shown. The pulse generator shall have a pulse
repetition frequency of 1 kHz and a pulse width of 200 ns recovery conditions 125 mA forward current to .250 mA reverse current.
Recovery time measured when rectifier recovers to 63 mA.

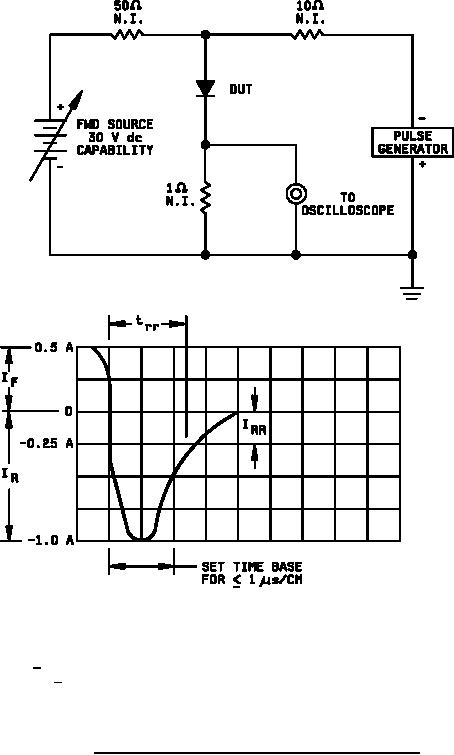

FIGURE 2. Reverse recovery time test circuit and characteristic nomograph.
13
