MIL-PRF-19500-407 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N3055, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power, transistor. Three levels of product assurance is provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/407E
NOTES:
1.  The rise time (tr) and fall time (tf) of applied pulse shall be each ≤ 20 ns, duty cycle ≤ 2 percent,
generator source impedance shall be 50Ω, pulse width = 20 µs.
2.  Output sampling oscilloscope: Zin ≥ 100 kΩ, Cin ≤ 50 pF, rise time ≤ 2 ns.

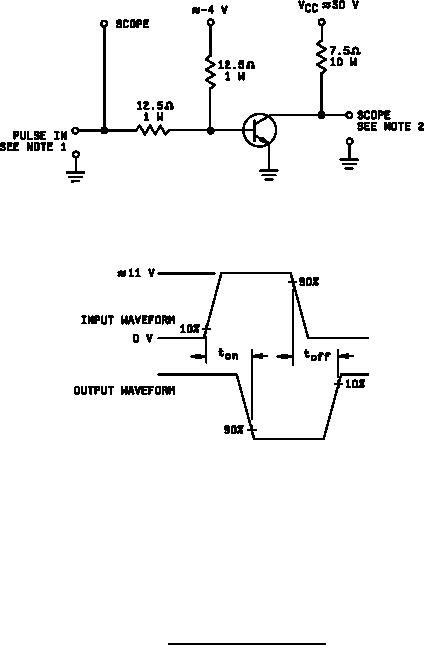

FIGURE 4. Pulse response test circuit.
13
