MIL-PRF-19500-423 Semiconductor Device, Transistor, Npn, Silicon, Switching, Types 2N5581 And 2N5582, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, switching transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/423G
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be ≤ 2.0 ns;
duty cycle ≤ 2 percent; generator source impedance shall be 50 ohms.
2. Output sampling oscilloscope: Zin ≥ 100 kΩ; Cin ≤ 12 pF; rise time ≤ 5.0 ns.

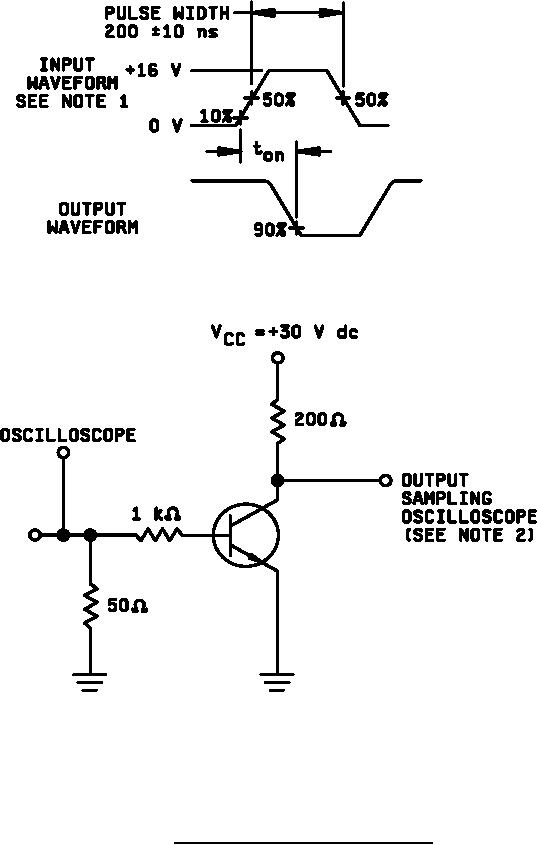

FIGURE 6. Saturated turn-on switching time test circuit.
