MIL-PRF-19500/423G
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be ≤ 2.0 ns; duty cycle ≤ 2 percent; generator
source impedance shall be 50 ohms.
2. Output sampling oscilloscope: Zin ≥ 100 kΩ; Cin ≤ 12 pF; rise time ≤ 0.2 ns.

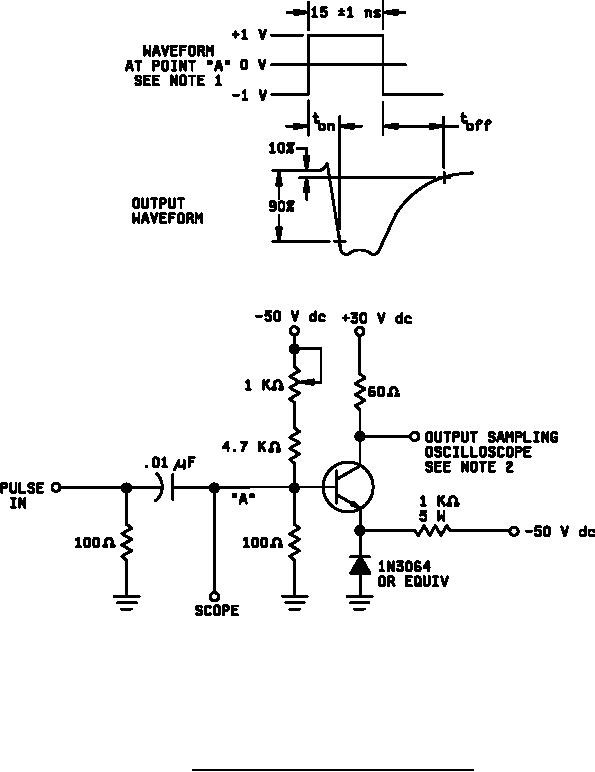

FIGURE 8. Nonsaturated turn-on switching time test circuit.
18
