MIL-PRF-19500/430C
Dimensions
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
φA
.209
.230
5.31
5.84
φB
.178
.195
4.52
4.95
C
.170
.210
4.32
5.33
D
.500
.750
12.70
19.05
E
.021
0.53
3
F
.016
.019
0.41
0.48
4
J
.028
.048
0.71
1.22
7
K
.036
.046
0.91
1.17
L
.020
0.51
N
.0146 Nom.
.037 Nom.
5
P
.0354 Nom.
.90 Nom.
5
NOTES:
1. Dimensions are in inches.
* 2. Millimeters are given for general information only.
3. Measured in the zone beyond .250 inch (6.35 mm) from the seating plane.
4. Measured in the zone from .50 inch (1.27 mm) to .250 inch (6.35 mm) from the seating plane.
5. When measured in a gauging plane .054 +.001, -.000 inch (1.37 -0.03, -0.00 mm) below the seating
plane of the transistor, maximum diameter leads shall be within .007 inch (0.18 mm) of their true
location relative to a maximum width tab. Smaller diameter leads shall fall within the outline of the
maximum diameter lead tolerance.
6. All leads electrically insulated from case and each section electrically isolated from the other.
7. Measured from the maximum diameter of the actual device.

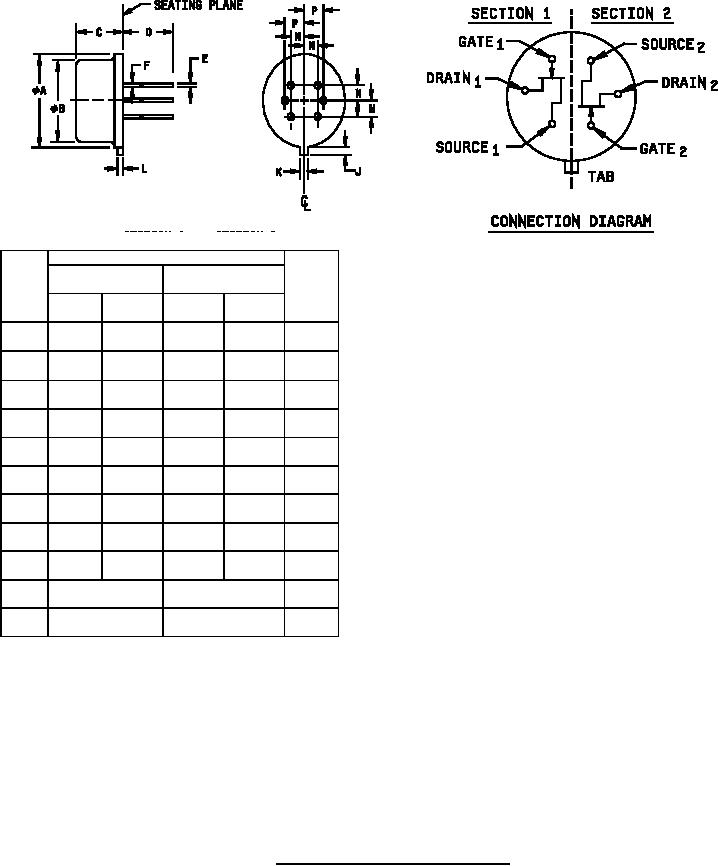

* FIGURE 1. Physical dimensions (similar to TO-71).
