MIL-PRF-19500-431 Semiconductor Device, Field Effect Transistors, N-Channel, Silicon, Types 2N4091, 2N4092, 2N4093, 2N4091Ub, 2N4092Ub, And 2N4093Ub Jan, Jantx, And JantxvThis specification covers the performance requirements for N-channel, junction, silicon field-effect transistors intended for use in chopper and analog gate circuit applications. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/431E
NOTES:
1. Measure under pulse conditions: Pulse width ≤ 300 ms; duty cycle ± 3 percent.
2.  2N4091, 2N4091UB: ID = 6.6 mA.
2N4092, 2N4092UB: ID = 4.0 mA.
2N4093, 2N4093UB: ID = 2.5 mA.
3.
2N4091, 2N4091UB: VGS(off) = -12 V.
2N4092, 2N4092UB: VGS(off) = -8.0 V.
2N4093, 2N4093UB: VGS(off) = -6.0 V.

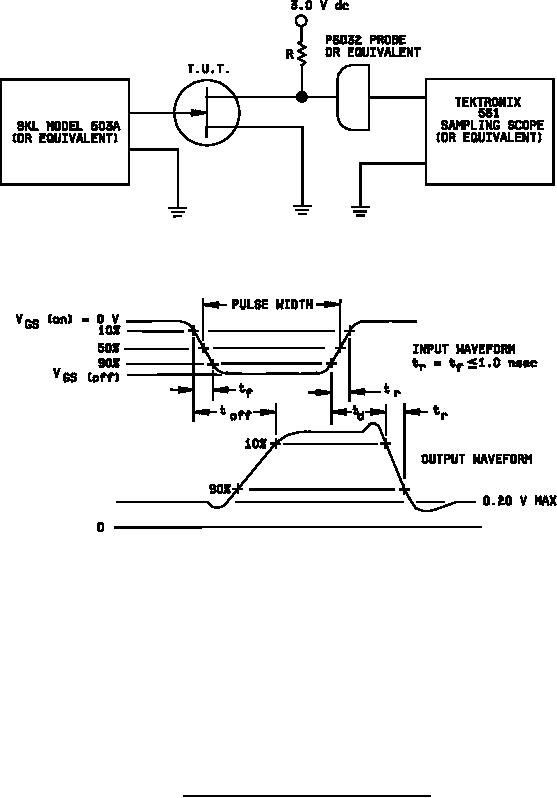

FIGURE 3. Switching time test circuit and waveforms.
11
