MIL-PRF-19500-510 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N6249, 2N6249T1, 2N6249T3, 2N6250, 2N6250T1, 2N6250T3, 2N6251, 2N6251T1, 2N6251T3, Jan, Jantx, Jantxv, Jans, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh, Janhcb, Jankcb, Jankcbm, Jankcbd, Jankcbp, Jankcbl, Jankcbr, Jankcbf, Jankcbg, And JankcbhThis specification covers the performance requirements for NPN silicon, power transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type. Provisions for radiation hardness assurance \(RHA\) to eight radiation levels is provided for JANS and JANKC product assurance levels. RHA level designators "M", "D", "P", "L", "R", "F", "G", and "H" are appended to the device prefix to identify devices, which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/510J

NOTES:

1. The rise time (tr) and the fall time (tf) of the applied pulse shall be each < 20 ns, duty cycle ≤ 2 percent;

generator source impedance shall be 50 Ω; pulse width = 20 �s.

2. Output sampling oscilloscope; Zin ≥ 100 Ωk; cin ≤ 50 pF, rise time < 2 ns.

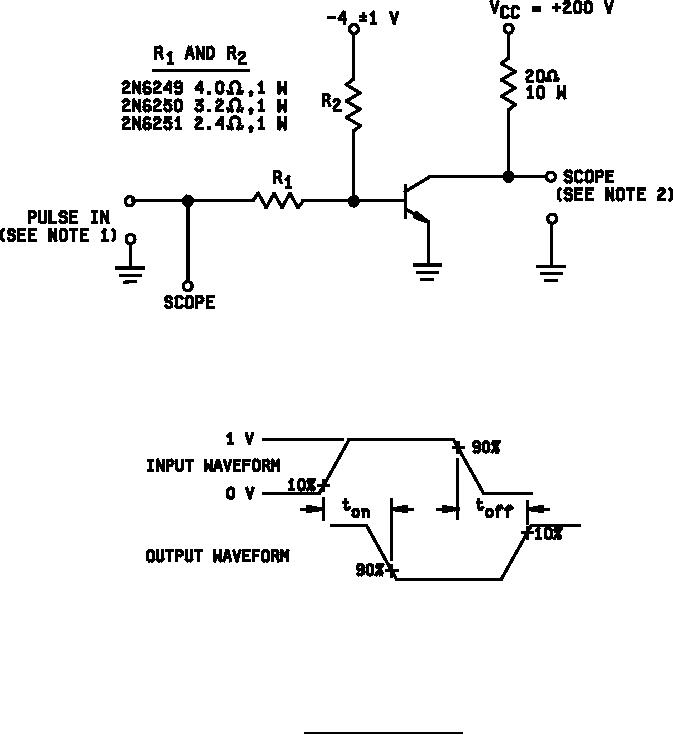

FIGURE 11. Pulse response test circuit.
