MIL-PRF-19500-512 Semiconductor Device, Transistor, Pnp, Silicon, Switching, Types 2N4029, 2N4033, 2N4033Ua, 2N4033Ub, Jan, Jantx, Jantxv, Jans, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh, Jankc2N4033, And Janhc2N4033This specification covers the performance requirements for PNP silicon transistors designed for use in high speed switching and driver applications. Four levels of product assurance are provided for each encapsulated device type and two levels of product assurance for each unencapsulated specified as in MIL-PRF-19500. Provisions for radiation hardness assurance \(RHA\) to eight radiation levels is provided for JANS product assurance levels. RHA level designators ┬ôM┬ö, ┬ôD┬ö, ┬ôP┬ô, ┬ôL┬ö, ┬ôR┬ö, ┬ôF┬Æ, ┬ôG┬ö, and ┬ôH┬ö are appended to the device prefix to identify devices, which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/512K

Dimensions

Symbol

Notes

Inches

Millimeters

Min

Max

Min

Max

.178

.195

4.52

4.95

.170

.210

4.32

5.33

.209

.230

5.31

5.84

.100 TP

2.54 TP

.016

.021

0.41

0.53

7, 8

.500

.750

12.70

19.05

7, 8, 12

.016

.019

0.41

0.48

7, 8

.050

1.27

7. 8

.250

6.35

7, 8

.040

1.02

.028

.048

0.71

1.22

3, 4

.036

.046

0.91

1.17

.010

0.25

.100

2.54

45�TP

NOTES:

1. Dimensions are in inches.

2. Millimeters equivalents are given for general information only.

3. Beyond r (radius) maximum, TW shall be held for a minimum length of .011 (0.28 mm).

4. Dimension TL measured from maximum HD.

5. Body contour optional within zone defined by HD, CD, and Q.

6. Leads at gauge plane .054 +.001 -.000 inch (1.37 +0.03 �0.00 mm) below seating plane shall be within

.007 inch (0.18 mm) radius of true position (TP) at maximum material condition (MMC) relative to tab at

MMC. The device may be measured by direct methods.

7. Dimension LU applies between L1 and L2. Dimension LD applies between L2 and minimum. Diameter is

uncontrolled in L1 and beyond LL minimum.

8. All three leads.

9. The collector shall be internally connected to the case.

10. Dimension r (radius) applies to both inside corners of tab.

11. In accordance with ASME Y14.5M, diameters are equivalent to θx symbology.

12. For "L" suffix devices, dimension LL is 1.50 (38.10 mm) minimum, 1.75 (44.45 mm) maximum.

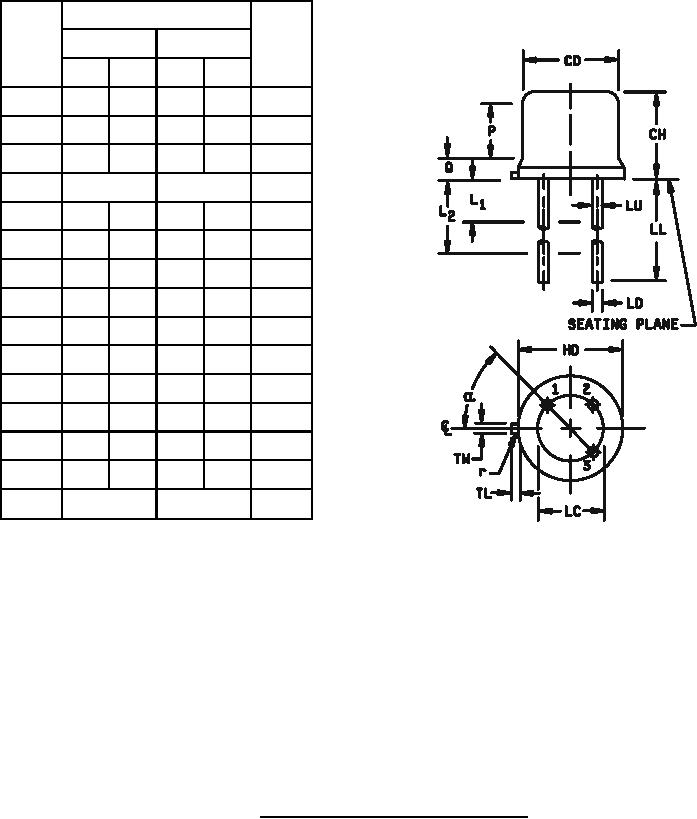

FIGURE 1. Physical dimensions (type 2N4029) (TO-18).
