MIL-PRF-19500-518 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N3766, 2N3767, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/518D

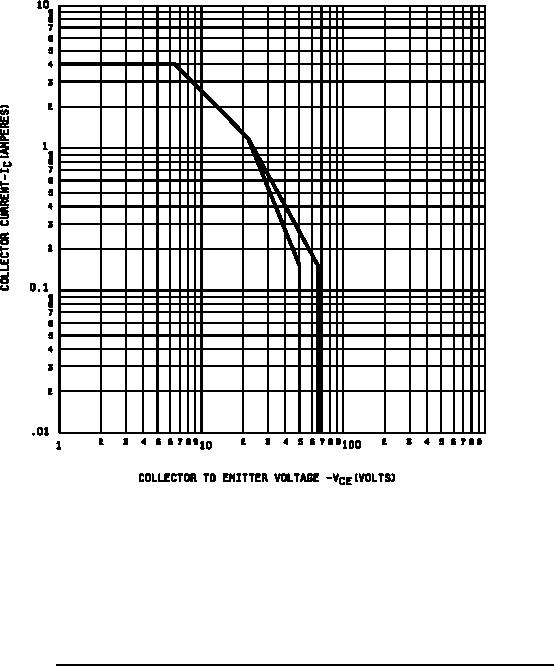

FIGURE 3. Maximum safe operating area graph (continuous dc) for types 2N3766 and 2N3767.
