MIL-PRF-19500/527E
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be each < 20 ns; duty cycle < 2 percent;
generator source impedance shall be 50Ω; pulse width = 20 ns.
2. Output sampling oscilloscope: ZIN > 100 kΩ; CIN < 50 pF; rise time < 20 ns.

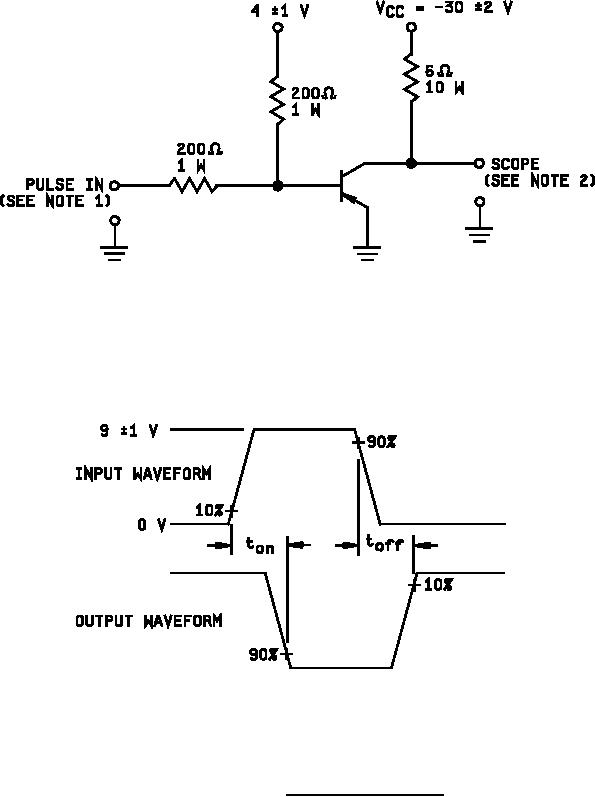

FIGURE 2. Pulse response test circuit.
13
