MIL-PRF-19500-528 Semiconductor Device, Transistor, Npn, Silicon, Power, Types 2N6032 And 2N6033 Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/528B
NOTE:
V(BR)CEO, V(BR)CER, V(BR)CEX is acceptable when the trace falls to the right and above point "A" for type 2N6032.
The trace shall fall to the right and above point "B" for type 2N6033.

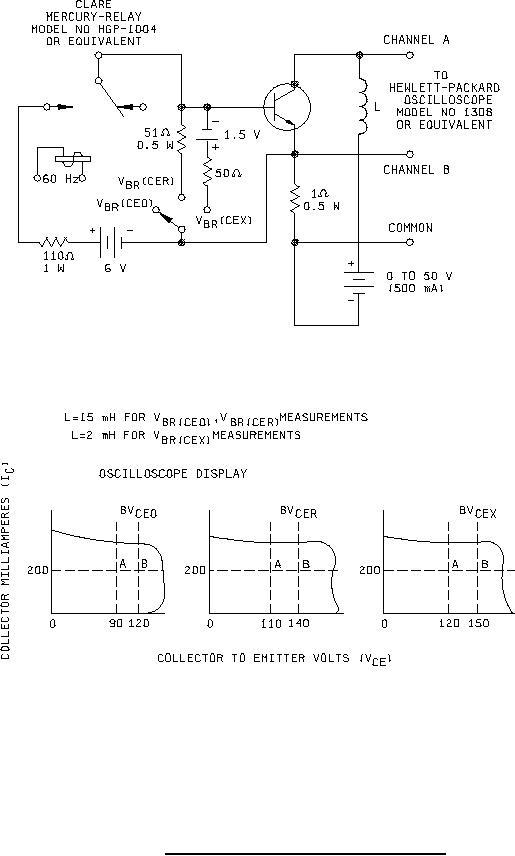

FIGURE 2. V(BR)CEO, V(BR)CER, V(BR)CEX measurement circuit.
