MIL-PRF-19500-528 Semiconductor Device, Transistor, Npn, Silicon, Power, Types 2N6032 And 2N6033 Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/528B
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be each < 20 nanoseconds;
duty cycle < 2%, generator source impedance shall be 50 ; pulse width : 20 ns.
2. Output sampling oscilloscope: Zin > 100 k; Cin < 50 pF; rise time < 20 nanoseconds.

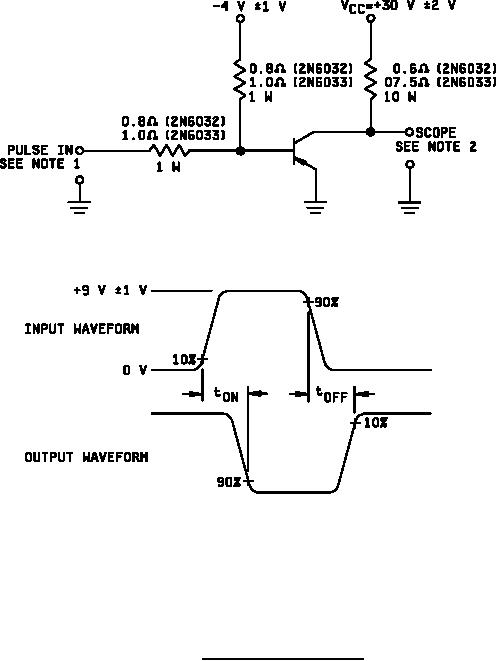

FIGURE 3. Pulse response test circuit.
