MIL-PRF-19500-545 Semiconductor Device, Transistor, Pnp, Silicon, Power, Types 2N5151, 2N5153, 2N5151L, 2N5153L, 2N5151U3, And 2N5153U3, Jan, Jantx, Jantxv, Jantxvf, Jantxvr, Jans, Janhc, And Jankc, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh, Janhcb, Janhcc, Janhcd, Jankcb, Jankcc, Jankcd, Jankccm, Jankccd, Jankccp, Jankccl, Jankccr, Jankccf, Jankccg, And JankcchThis specification covers the performance requirements for PNP, silicon, power transistors for use in high-speed power-switching applications. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type. RHA level designators "M", "D", "P", "L", "R", "F", "G", and "H" are appended to the device prefix to identify devices, which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/545K
Maximum Thermal Impedance
1000
100
10
1
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
10
100
1000
10000
1
Time (s)

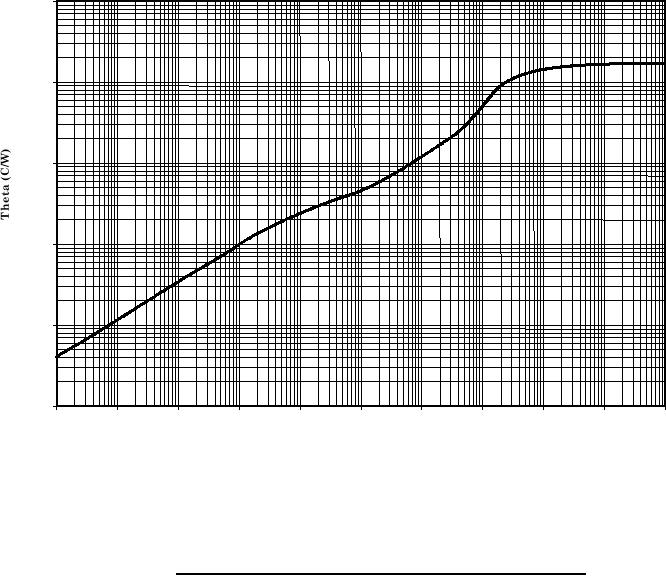

2N5151, 2N5151L, 2N5153, and 2N5153L at TA = +25°C, RθJA = 175°C/W.
FIGURE 12. Thermal impedance graph, TO-205 package at ambient temperature.
