MIL-PRF-19500-551 Semiconductor Device, Diode, Silicon, Transient Voltage Suppressor Types 1N6461 Through 1N6468, 1N6461Us Through 1N6468Us, And 1N6461Urs Through 1N6468Urs, Jan, Jantx, And JantxvThis specification covers the performance requirements for 500-watt peak pulse, power, silicon, transient voltage suppressor diodes. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/551G
Dimensions
Inches
Millimeters
Notes
Ltr
Min
Max
Min
Max
BD
.115
.145
2.92
3.68
3, 4
BL
.150
.300
3.81
7.62
4
schematic symbol
LD
.037
.042
0.94
1.07
4
LL
.900
1.300
22.86
33.02
LL1
.050
1.27
4
NOTES:
1.  Dimensions are in inches.
2.  Millimeters are given for general information only.
3.  Dimension BD shall be measured at the largest diameter.
4.  Dimension BL includes dimension LL1 region in which the diameter may vary from BD maximum to LD
minimum.
5.  In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

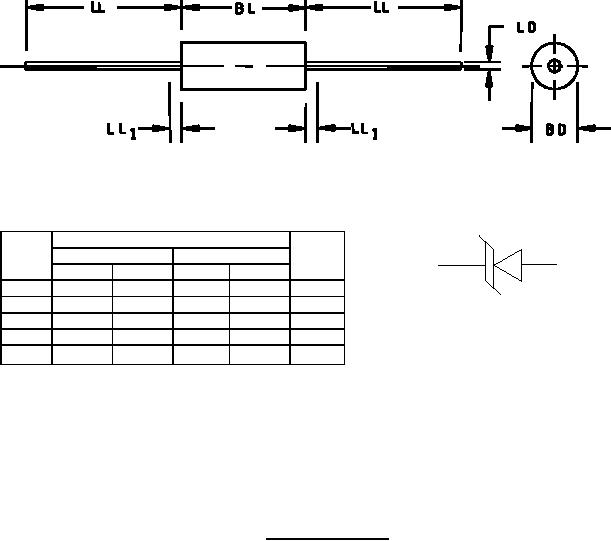

FIGURE 1. Physical dimensions.
4
