MIL-PRF-19500-552 Semiconductor Device, Diode, Silicon, Transient Voltage Suppressor, Types 1N6469 Through 1N6476, 1N6469Us Through 1N6476Us, 1N6469Urs Through 1N6476Urs, Jan, Jantx, And JantxvThis specification covers the performance requirements for 1,500-watt silicon, transient voltage suppressor diodes. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/552G
Dimensions
Inches
Millimeters
Ltr
Notes
Min
Max
Min
Max
.150
.185
BD
3.81
4.70
3
.150
.375
BL
3.81
9.53
3
.037
.042
LD
0.94
1.07
.900
1.300
LL
22.86
33.02
.050
LU
1.27
4
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Package contour optional within BD and length BL. Heat slugs, if any, shall be included within
this cylinder but shall not be subject to minimum limit of BD.
4. Within this zone, lead diameter may vary to allow for lead finishes and irregularities other than
heat slugs.
5. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

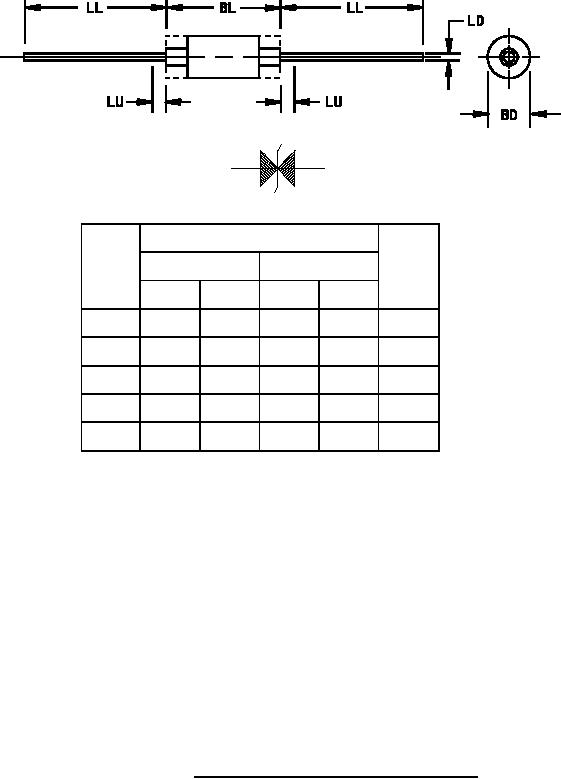

FIGURE 1. Physical dimensions (1N6469 through 1N6476).
2
