MIL-PRF-19500/567E
Rin = 5.0 Ω, 1 W
VG = 10 Volts
RG = 50 Ω
RS = 0-1 Ω, 1 W
PW = 30 µs
L = 260 µH
Duty cycle ≤ 1 percent
T = IRF130/2N6756 or equivalent
Procedure:
1. With S open, adjust pulse width to test current of 2 A across RS.
2. Close S. Verify test current with current sense.
3. Read peak output voltage (see 4.5.4).

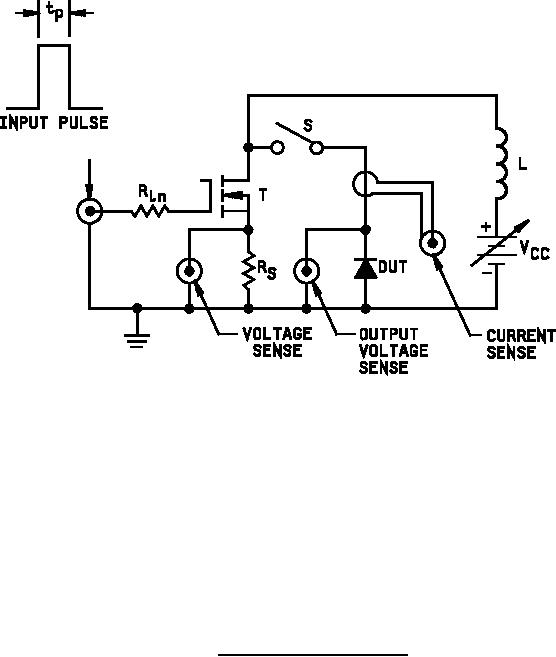

FIGURE 4. Peak reverse energy test circuit.
13
