MIL-PRF-19500/609K
MAXIMUM THERMAL IMPEDANCE PLOTS
JTXV1N6638 Family D-Pkg MELF Tec=25C
`US' PARTS, TEC = 25°C
Maximum Thermal Impedance Plots
100
10
1
0.0001
0.001
0.01
0.1
1
10
Time (s)
ThetaX Plotter Veresion 11/23/04 by Ray DiBugnara
RθJEC = 40°C/W
NOTE: ZθJX = 25°C/W maximum at tH = 10ms.

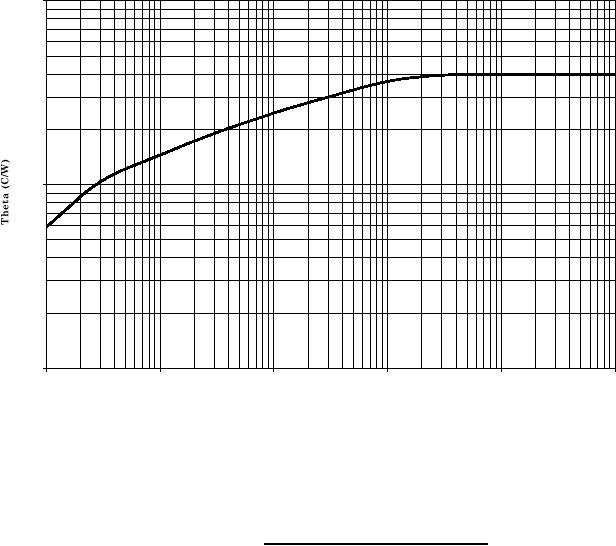

FIGURE 7. Thermal impedance - all `US' devices.
17
