MIL-PRF-19500/609K
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.0130
.0170
0.330
0.432
B
.0059
.0061
0.150
0.155
C
.008
.012
0.20
0.30
NOTES:
1.  Dimensions are in inches. Millimeters are given for general information only.
2.  Element evaluation accomplished utilizing TO-5 package.
3.  The physical characteristics of the die are:
Metallization:
Top (anode): Al
Back (cathode): Au
Al thickness: 25,000 Å minimum.
Gold thickness: 4,000 Å minimum.
Chip thickness: .010 inches (0.25 mm) ±.002 inches (0.05 mm).

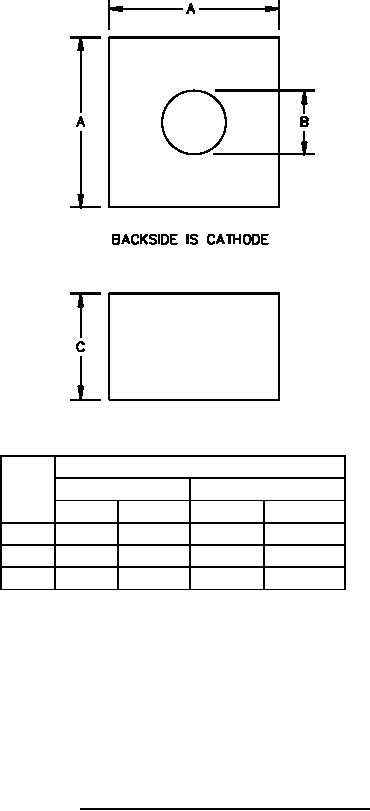

FIGURE 4. Physical dimensions, JANHCB and JANKCB die.
6
