MIL-PRF-19500/609K
Dimensions
Symbol
Notes
Inches
Millimeters
Min
Max
Min
Max
BD
.056
.080
1.42
2.03
3, 4
BL
.130
.180
3.30
4.57
4
LD
.018
.022
0.46
0.56
5
LL
1.00
1.50
25.40
38.10
NOTES:
1.
Dimensions are in inches.
2.
Millimeters are given for general information only.
3.
Dimension BD shall be measured at the largest diameter.
4.
The minimum dimension of BD shall apply over at least .065 inch (1.65 mm) of dimension BL.
5.
The specified lead diameter applies in the zone between .050 inch (1.27 mm) from the diode body to the
end of the lead. Outside of this zone lead shall not exceed BD.
In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.
6.
Types 1N6639, 1N6640, and 1N6641.

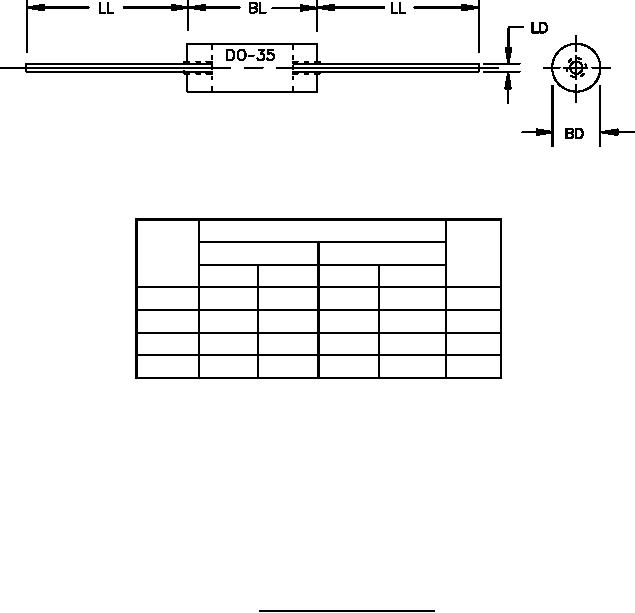

FIGURE 1. Physical dimensions (DO-35).
3
