MIL-PRF-19500-625 Semiconductor, Device, Diode, Silicon, Switching Types 1N6683, 1N6684, 1N6685, In6683Us, 1N6684Us, And 1N6685Us Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for switching diodes, suitable for high stress environments where silver button construction may be inadequate \(see 6.3\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-19500/625A

Dimensions

Symbol

Millimeters

Inches

Notes

Min

Max

Min

Max

1.52

2.29

.060

.090

2, 3

0.46

0.56

.018

.022

3.05

5.08

.120

.200

25.40

38.10

1.000

1.500

TYPES 1N6683, 1N6684, AND 1N6685

NOTES:

1. Inch equivalents are given for general information only.

2. The maximum dimension of BD shall apply for dimension BL.

3. The minimum dimension of BD shall apply over at least 1.65 mm (.065 inch) of dimension BL.

4. The specified lead diameter applies in the zone between 1.27 mm (.050 inch) from the diode body to the end of the

lead. Outside of this zone lead shall not exceed BD.

5. Dimensions are in millimeters.

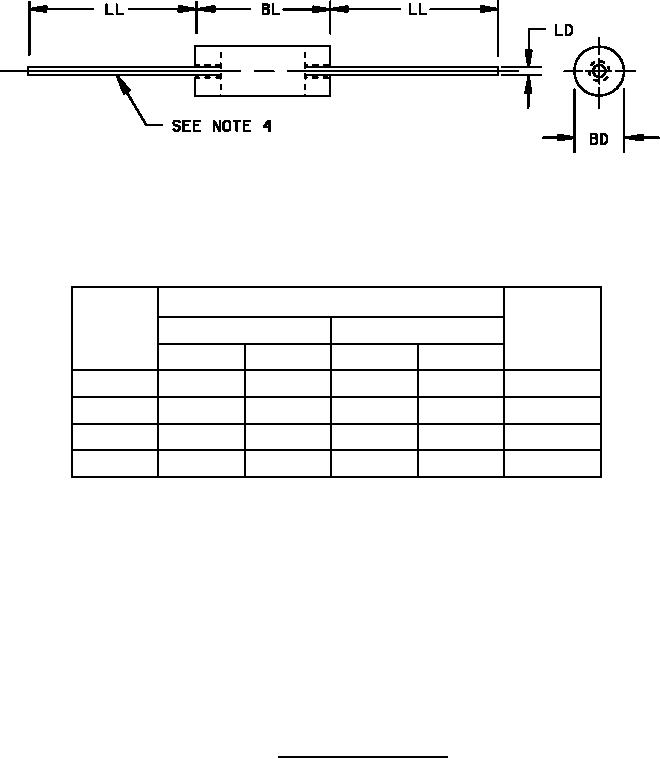

FIGURE 1. Physical dimension (D0-204-AH).
