MIL-PRF-19500-625 Semiconductor, Device, Diode, Silicon, Switching Types 1N6683, 1N6684, 1N6685, In6683Us, 1N6684Us, And 1N6685Us Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for switching diodes, suitable for high stress environments where silver button construction may be inadequate \(see 6.3\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/625A
Dimension
DESIGN DATA
Symbol
Millimeters
Inches
Metallization:
Min
Max
Min
Max
Top: (Cathode) . . . . . Au
Back (Anode). . . . . . . Au
A
0.48
0.64
.019
.025
Au thickness:
Top: . . . . . . . . . . 10,000Å minimum
B
0.20
0.30
.008
.012
Back: . . . . . . . . . . 4,000Å minimum
C
0.18
0.28
.007
.011

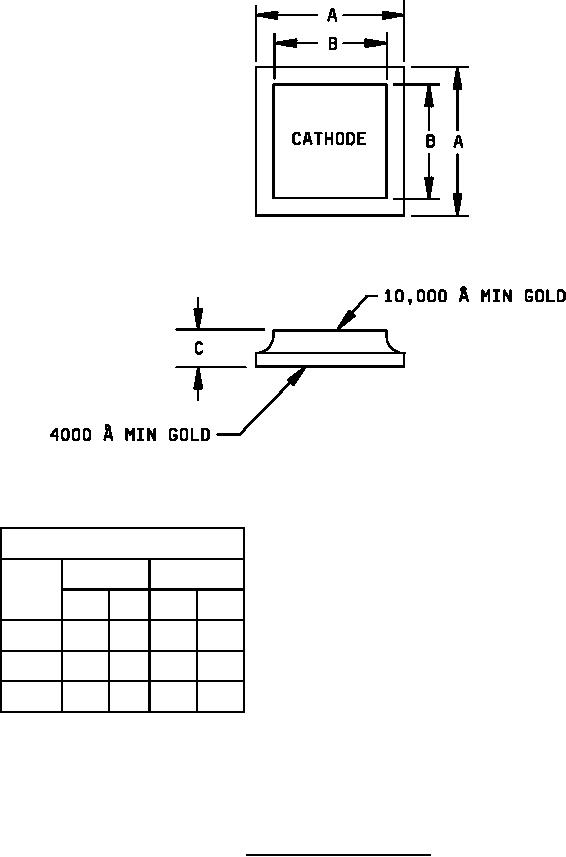

FIGURE 3. JANHC and JANKC die (A Version).
4
