MIL-PRF-19500-169 Semiconductor Device, Diode, Silicon, Switching, Types 1N3070, 1N3070-1, 1N3070Ur-1, 1N4938, 1N4938-1, 1N4938Ur-1, Jan, Jantx, Jantxv, Janhc, And JankcThis specification covers the performance requirements for silicon, switching diodes. Three levels of product assurance are provided for each device type and two product assurance levels are provided for die, as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-19500/169N
1N4938UR-1  DO-213AA TEC = 25°C
JTXV1N4148UR Family Ennis DO-35 MELF Tec=25C
Maximum TheramaedImepedance Plots
Therm l Imp l anc Plots
1000
100
10
1
0.0001
0.001
0.01
0.1
1
10
Time (s)
RΘJEC = 100°C/W
NOTE: ZΘJX = 70°C/W maximum at tH = 10ms.

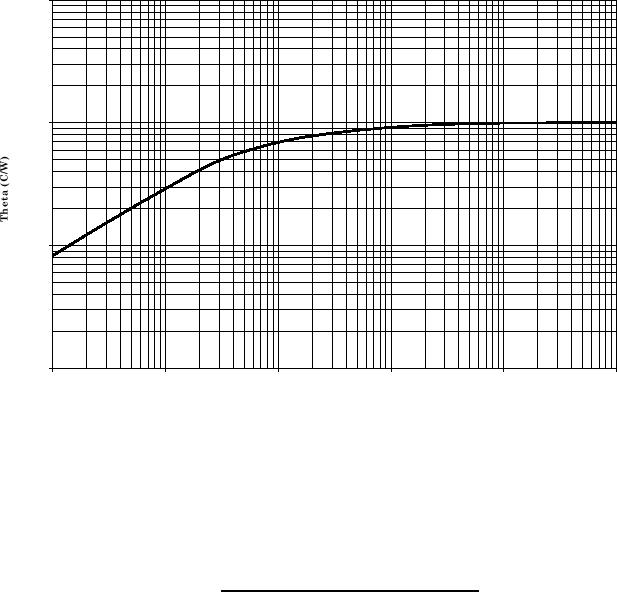

FIGURE 8. Thermal impedance (MELF surface mount).
