MIL-PRF-19500-169 Semiconductor Device, Diode, Silicon, Switching, Types 1N3070, 1N3070-1, 1N3070Ur-1, 1N4938, 1N4938-1, 1N4938Ur-1, Jan, Jantx, Jantxv, Janhc, And JankcThis specification covers the performance requirements for silicon, switching diodes. Three levels of product assurance are provided for each device type and two product assurance levels are provided for die, as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-19500/169N
UR
DO-213AA
Dimensions
Inches
Millimeters
Symbol
Min
Max
Min
Max
BD
.063
.067
1.60
1.70
BL
.130
.146
3.30
3.71
ECT
.016
.022
0.41
0.56
S
.001
0.03
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimensions are pre-solder dip.
4. Referencing to dimension S, minimum clearance of glass body to mounting surface on all orientations.
5. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

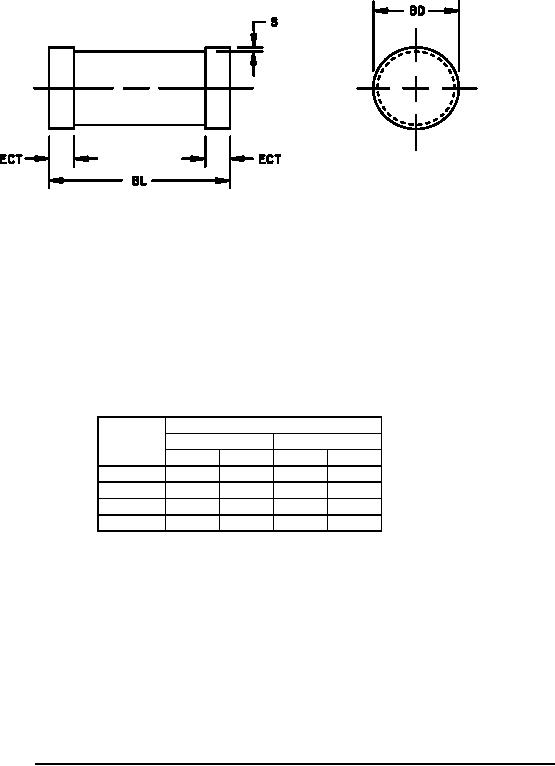

FIGURE 3. Physical dimensions and configuration for 1N3070UR-1 and 1N4938UR-1 (DO-213AA).
4
