MIL-PRF-19500/312E

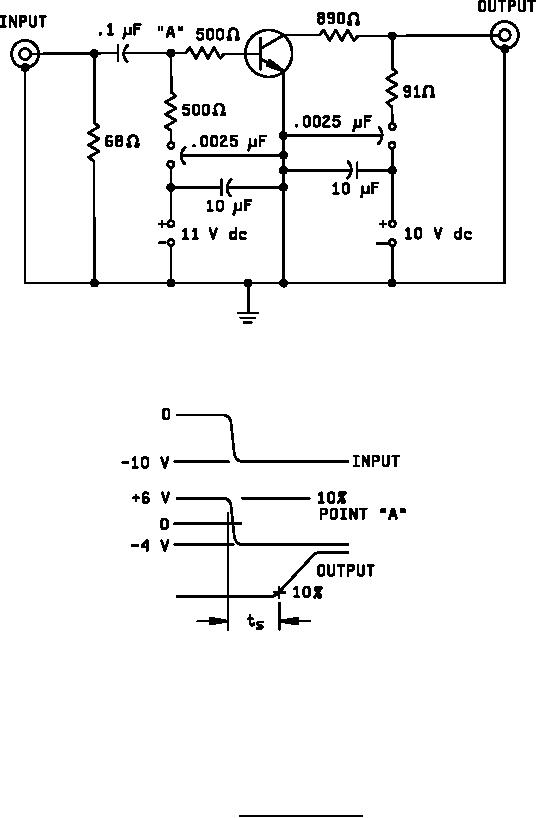

NOTES:

1. The input waveform is supplied by a pulse generator with the following characteristics: Zout = 50Ω, tr ≤ 1 ns,

PW ≥ 300 ns, duty cycle ≤ 2 percent.

2. Output waveforms are monitored on a sampling oscilloscope with the following characteristics: Zin ≥ 100 kΩ,

tr ≤ 1 ns.

FIGURE 3. Charge storage time.
