MIL-PRF-19500/312E

NOTES:

20 x 20 mils, � 2 mils.

1. Chip size:

10 mils, � 1.5 mils nominal.

2. Chip thickness:

3. Top metal:

Aluminum 10,000 � min, 12,000 � nominal.

4. Back metal:

a. Al/Ti/Ni/Ag 12 k�/ 3 k�/ 7 k�/ 7 k� min., 15 k�/ 5 k�/ 10 k�/ 10 k�.

b. Gold 2,500 � minimum, 3,000 � nominal.

c. Eutectic mount - no gold.

5. Backside:

Collector.

6. Chip size:

B = 4 X 4.5 mils, E = 4.5 X 5 mils.

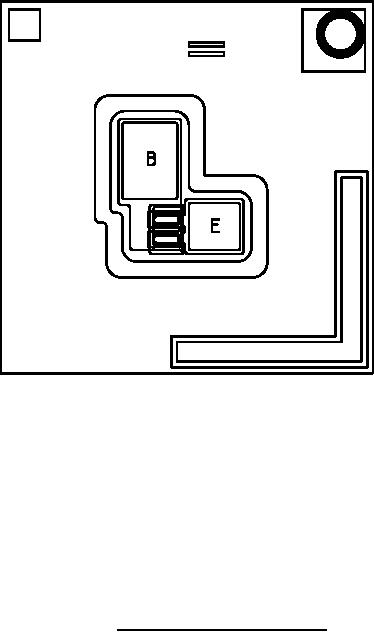

FIGURE 2. JANHC (A-version) die dimensions.
