MIL-PRF-19500/359K
Dimensions
Inches
Millimeters
Ltr
Notes
Min
Max
Min
Max
BD
.065
.150
1.65
3.81
3, 4
BL
.140
.250
3.56
6.35
4
LD
.027
.033
0.69
0.84
LL
1.00
1.50
25.4
38.1
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for general information only.
3. Dimension BD shall be measured at the largest diameter.
4. The BL dimension shall include the entire body including slugs and sections of the lead over which the
diameter is uncontrolled. This uncontrolled area is defined as the zone between the edge of the diode
body and extending onto the leads .050 inch (1.27 mm).
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

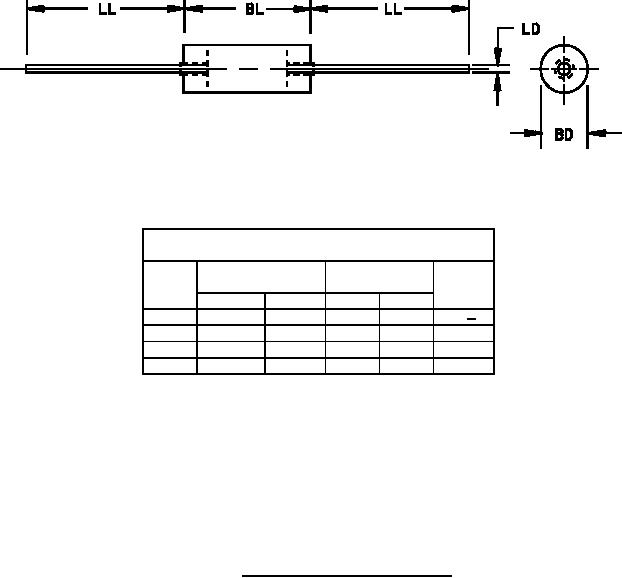

FIGURE 1. Physical dimensions axial package.
