MIL-PRF-19500/374E
NOTES:
1.  Chip size....................
100 X 100 mils
2.  Chip thickness ...........
6 to 12 mils
3.  Top metal ..................
Aluminum 25,000 Å minimum, 33,000 Å nominal
4.  Back metal.................
Gold 1,500 Å minimum, 2,500 Å nominal
5.  Backside....................
Collector
6.  Bonding pad ..............
12 x 30 mils

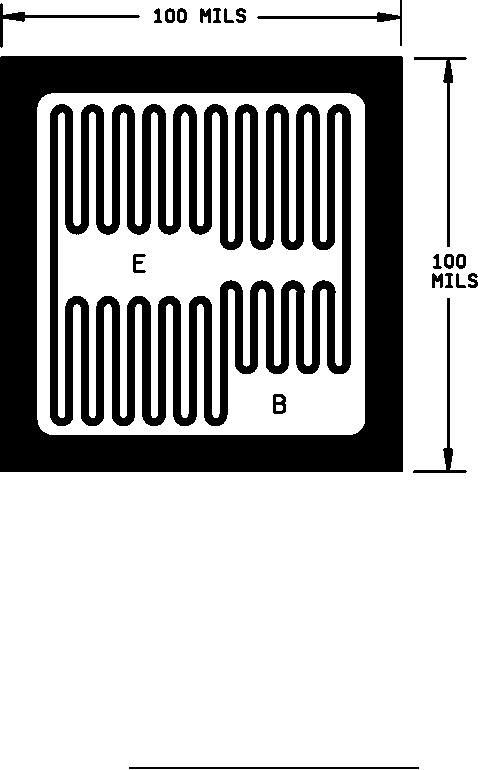

FIGURE 4. JANHC and JANKC (B-versions) die dimensions.
8
